The RX Groups Tab is where you would add, remove or edit existing Receive Groups for use with your channels.

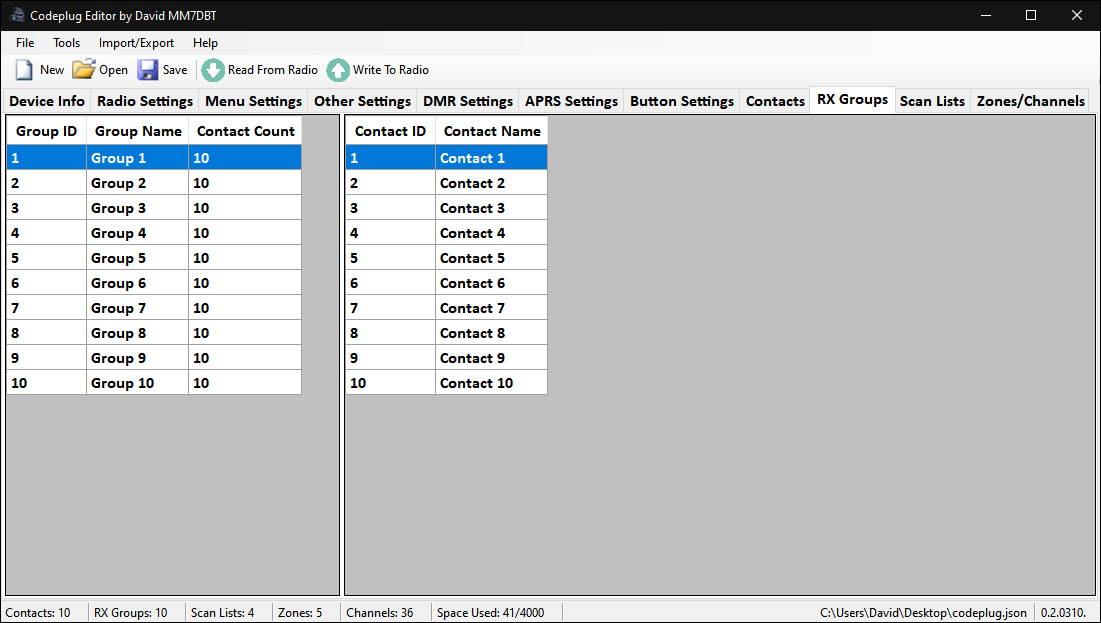

RX Groups.png

RX Groups Editor

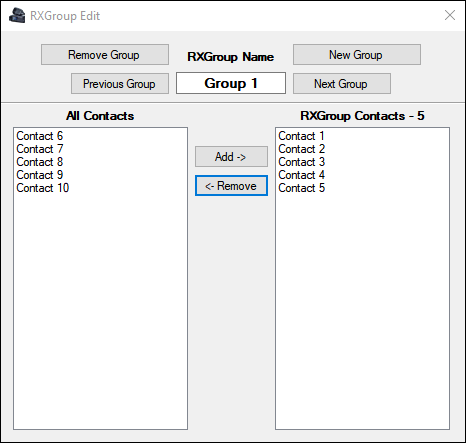

To open the RX Group Edit form, double-click on any group and the form will open with the group you selected.

Here you can add or remove contacts from the currently selected group.

The left column is a list of all contacts currently in your codeplug. The right column is the contacts you have assigned to the currently selected RX Group.

To add or remove a single contact you can double-click on it in either column or click to select the contact and then click on the Add or Remove buttons.

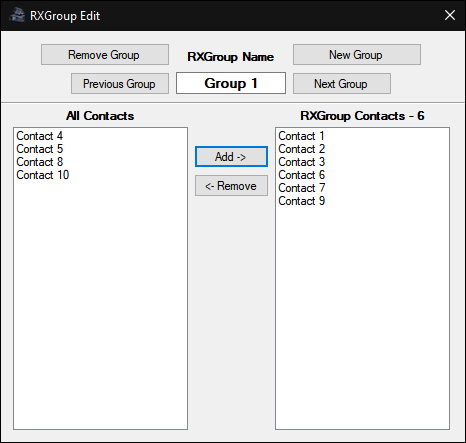

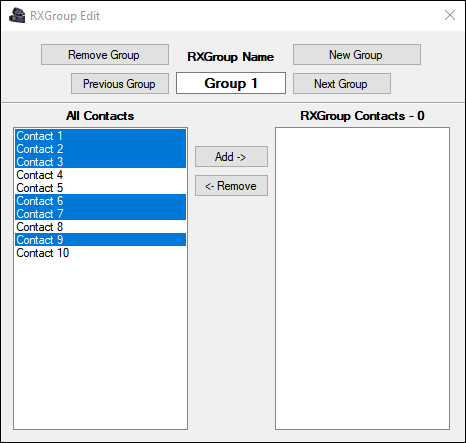

You can add or remove multiple contacts at once by either clicking and dragging the mouse over the contacts or by using CTRL or SHIFT on the keyboard to select multiple.

Once you have your selection you can click the Add or Remove buttons.
